MACHINES SALE/RENT



STUDER S30 Lean Pro (2 external wheels, automatic “B” axis 1 degree, Marposs)

STUDER GS35 (external, retrofitted new Siemens cnc possible to profile wheel, LP)

STUDER S25 cnc (external small pieces, only 1,000 hours per year)

STUDER S35 (external+internal, less than 1,000 hours per year)

STUDER S20-2 (external+internal, machine currently in production, many accessories)

STUDER S20 cnc (external, Fanuc cnc, Movomatic)

STUDER S25 cnc Fanuc (external, Movomatic, Dittel autobalance)

STUDER S40-4 (2 external + internal Marposs+LP, less than 1,000 hours per year)

STUDER S40 cnc 1600mm

STUDER S145 (3 internal + external, Fanuc cnc, “Q” axis +/- 30 deg, temp controlled coolant)

STUDER cnc repairs (S35, Siemens 3G)

ACCESSORIES

WE BUY/SELL ONLY SELECTED STUDER MACHINES DIRECT TO/FROM CUSTOMER AND OFFER INSTALLATION,TRAINING, SERVICE. WE ARE SPECIALIST ONLY IN STUDER MACHINES SINCE 1984.


STUDER S35
Studer CNC grinding machine Internal/External ready to be retrofitted with new Siemens control, length positioning, wheelhead swivel +/- 8.5 degrees, coolant tank, – Price on Application


STUDER GS35 Siemens cnc

CNC External Grinder retrofitted with new Siemens control to enable dressing left/right side of wheel, iso profiling of wheel, active length positoning, wheelhead swivelling +/- 8.5 degrees, Wheel diameter 500mm, centre height 175mm, between centres 1000mm – Price on Application


STUDER S25 cnc

Studer External CNC Grinder high production (small components), 400mm dia wheel, automatic balancing, Movomatic in process gauge, coolant tank, ideal machine for small hydraulic – fuel injectors high precision parts – Price on Application


STUDER S20 cnc Fanuc

400MM CENTRES X 100MM, MOVOMATIC LP/DIAMETER UNIT, TABLE SWIVEL 15 DEGREES, HEAVY DUTY WORKHEAD AND TAILSTOCK, SENSITRON GAP ELIMINATOR, FINE TAPER ADJUSTMENT, FANUC CNC, OIL MIST EXTRACTOR AVAILABLE, VERY WELL MAINTAINED Price on Application


STUDER CONTROL REPAIRS FOR S35, SIEMENS 3G

S35 – S25 CIRCUIT BOARDS GROSSENBACHER FMS 8/88 SUPPLY/REPAIR: AVAILABLE POWER SUPPLY 5050554, VIDEO 111 INTERFACE 5070156, VIDEO 111 CPU 5070160, VIDEO 111 MEMORY 5070168, EPROM 5070074, CPU TECHNOLOGY 5050570, CPU DIAGNOSE 5050570, INPUT BOARD 5050003, OUTPUT BOARD 5050005, INPUT/OUTPUT BOARD 5050192, TELEDIAGNOSE 5050194, INTERPOLATOR 5050509, AXIS MODUL 5070085, ALSO AVAILABLE S35 MONITORS, MOTORS, SIMODRIVE CARDS 6SC6100-ONA21, 6SC6100-OGA00, 6SC6108-OSG80, 6SC6120-OFE80, AIR CONDITIONER MCLEANS, 14″ MONITOR, DISK DRIVE, SENSITRON, MOVOMATIC CR60-CR100-CR257, WHEEL FLANGES ETC ON SITE SERVICE AVAILABLE.


ACCESSORIES

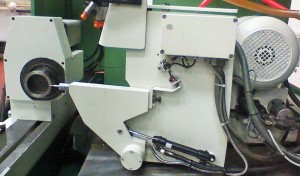

complete Internal spindle units for S30 Lean, other spindles available, 20,000 – 40,000 – 60,000 also available S35 swing down internal attachment


STUDER S20-2

Studer S20 external/internal grinder 400mm between centres, sensitron air gap elimination, new fine adjustment tailstock, collets, coolant tank, air mist filter price on application


STUDER S30 LEAN PRO Fanuc cnc External

“B” AXIS AUTOMATIC 1 DEGREE, 1000MM CENTRE DISTANCE X 175MM HEIGHT, 2 EXTERNAL WHEELS 500/400MM, MARPOSS UNIT, ACTIVE LEGNTH POSITIONING, SWIVEL OF TABLE 8.5 DEGREES, COOLANT TANK, NEW MORSE CONE 4 TAILSTOCK WITH FINE TAPER ADJUSTMENT, EX USA AEROSPACE MACHINE. Price on Application


STUDER S25 cnc Fanuc

COMPACT HIGH SPEED HIGH PRECISION AND HIGHEST QUALITY PRODUCTION MACHINE FOR SMALL COMPONENTS (EG HYDRAULIC SPOOLS, FUEL INJECTION COMPONENTS ETC), CAN GRIND STRAIGHT OR AT 30 DEGREES, LENGTH POSITIONING, AUTOMATIC WHEEL BALANCING,
CAN PROFILE GRINDING WHEEL. Price on Application


STUDER S40 – 4 Siemens cnc

STUPENDA STUDER S40-4 CENTRI 650MM ALTEZZA 125MM, CON 3 MOLE ROTAZIONE AUTOMATICO, MISURATORE MARPOSS + POSIZIONATORE, LARGHEZZE MOLE EXTRA LARGHE PER MOLE FINO A 150MM,

MACCHINA IN OTTIMO CONDIZIONE CON POCO ORE DI LAVORO E PRONTO AL USO. Price on Application

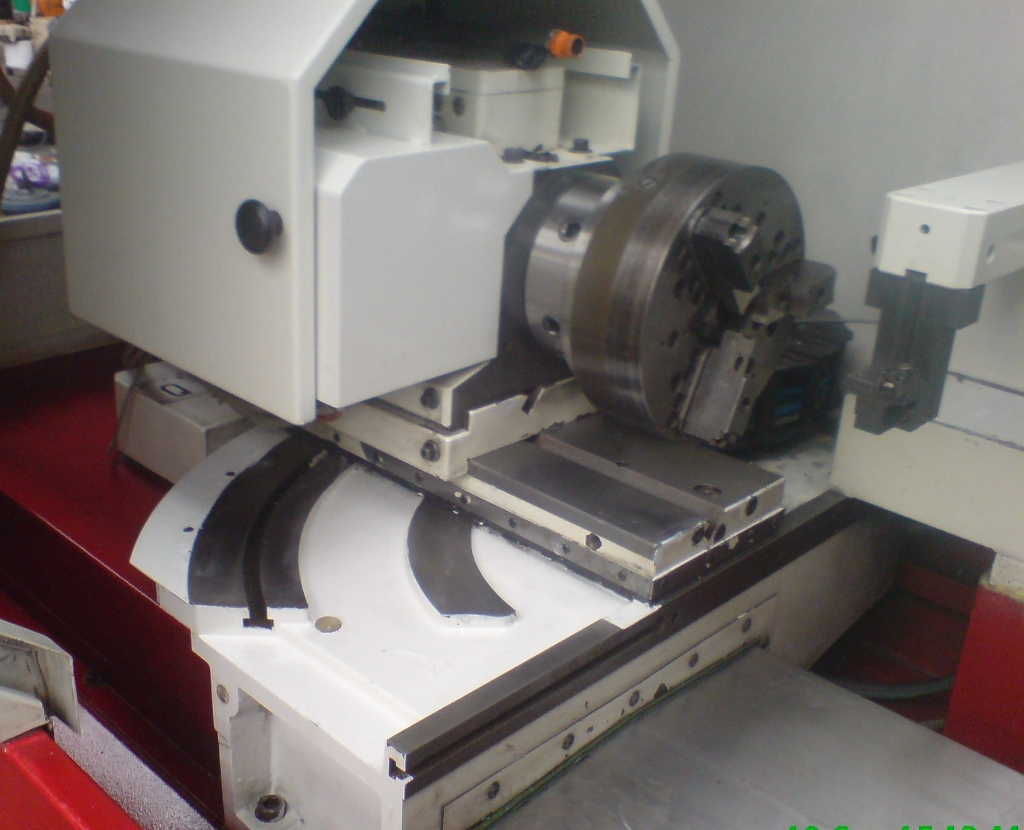

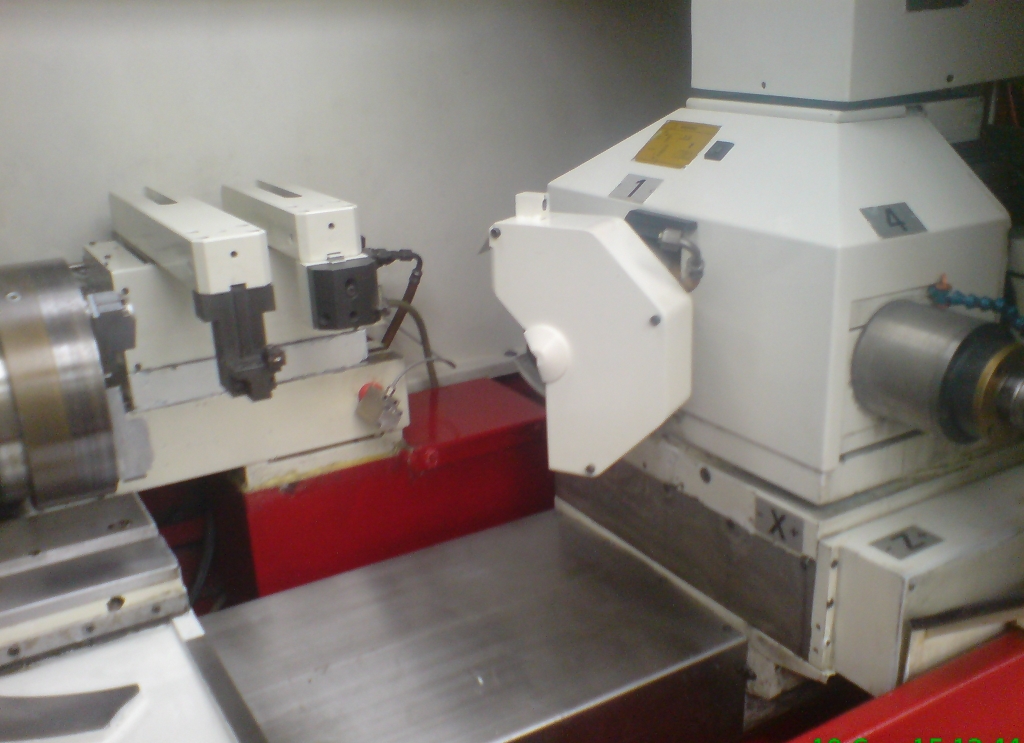

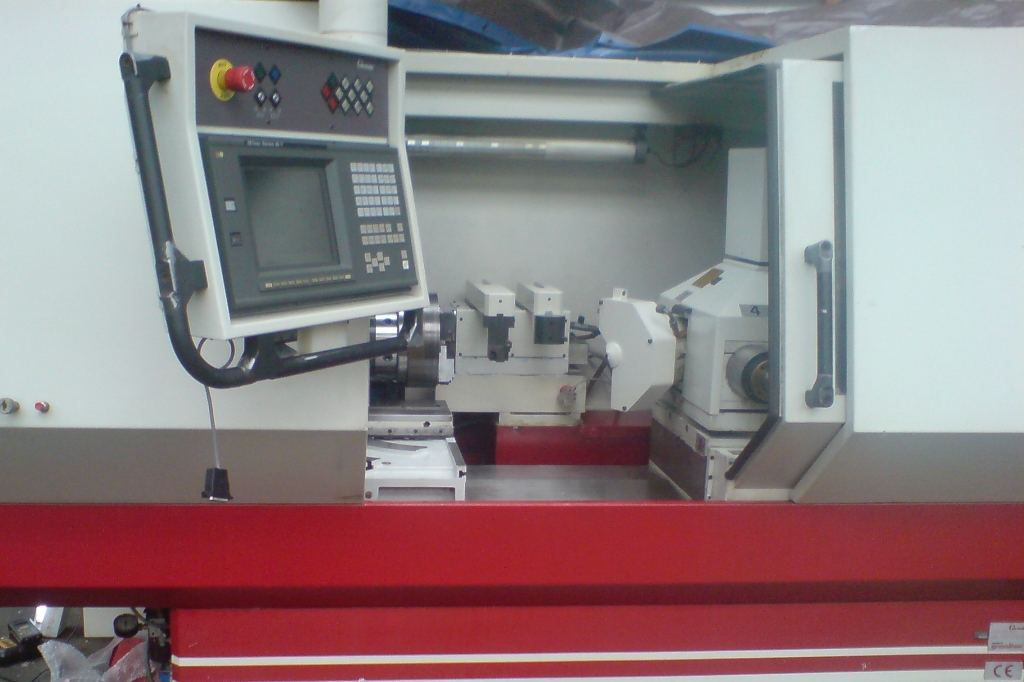

STUDER S145 cnc Fanuc

3 INTERNAL SPINDLES + EXTERNAL FISCHER SPINDLES, WOKKHEAD “Q” AXIS ANY ANGLE +/- 30 DEGREES, SENSITRON AIR GAP ELIMINATOR, FORKHART AUTOMATIC CHUCK CLAMPING, 2 INDIPENDENT DRESSING ARMS, COOLANT TANK WITH COOLING UNIT AND SEPARATE TANK FOR SPINDLE COOLING, OIL MIST EXTRACTOR, CABINET OF SPINDLE WHEEL ARBORS. Price on Application



STUDER S40 cnc 1600mm

1600MM CENTRE DISTANCE 175MM HEIGHT, EASY FANUC PICTOGRAMMING, WHEELHEAD “B” AXIS FINE -15/225 DEGREES, ISO WORKHEAD CONE, 2 EXTERNAL WHEELS LEFT 500MM AND RIGHT 400MM WITH FREQUENCY CONTROL SPEEDS + WITH WATER COOLED MOTOR, INTERNAL GRINDING SPINDLE WITH FREQUENCY CONVERTER, FULLY ENCLOSED, TABLE MOVABLE 6 DEGREES, TEMPERATURE CONTROLLED COOLANT TANK. EXTRACTOR MIST ATTACHTMENT, MACHINE FITTED FLOOR STANDING, WHEEL EXTRACTOR CRANE, MARPOSS READY + ACTIVE LENGTH POSITIONING, SENSITRON AIR GAP, FINE TAPER ADJUSTMENT ON TAILSTOCK. – Price on Application


WE BUY/SELL ONLY SELECTED STUDER MACHINES DIRECT TO/FROM CUSTOMER AND OFFER INSTALLATION,TRAINING, SERVICE. WE ARE SPECIALIST ONLY IN STUDER MACHINES SINCE 1984.
